Hit the ground running with Intrepid’s full line of Automotive Ethernet tools!
Automotive Ethernet (AE) represents the latest challenge to the status quo in automotive networking. Many OEMs are now moving forward with this exciting new technology, which promises high performance at low cost, especially for infotainment applications.
Capturing Automotive Ethernet Frames
Automotive Ethernet traffic cannot be monitored using the same techniques employed for buses like CAN. Ethernet networks use star topology, so there is no single point to monitor an entire network. The sophisticated technology employed also means bit values cannot be interpreted directly from voltage levels. Finally, Ethernet hardware silently discards erroneous frames, making diagnosing problem conditions difficult. Intrepid’s tools are designed to address all of these issues conveniently and efficiently.
RAD-Moon
The inexpensive, pocket-sized RAD-Moon easily interfaces conventional Ethernet with BroadR-Reach® (100BASE-T1 compatible). Powered by USB, the RAD-Moon allows you to communicate directly between a PC and an Automotive Ethernet ECU.
Key Features:
• One BroadR-Reach® Automotive Ethernet PHY (BCM89810) connected directly to one 4-wire 100BASE-TX standard Ethernet PHY
• 100BASE-T1 compatible
• Powered via USB
• Master/slave auto-configuration
• Activity and link LEDs for both PHYs
• Molex Mini 50 connector for BroadR-Reach® PHY
• RJ-45 connector for 10/100 Mb PHY
• Compact for portability
• Rugged extruded aluminum enclosure
RAD-Moon Duo
The RAD-Moon Duo is a Dual media converter for connecting to two port of 100BASE-T1 physical layer to two port of a 4-wire 10/100 Ethernet (100BaseTX).
Key Features:
- Dual 100BASE-T1 via Marvell 88Q1010 PHY
- Configure and monitor the registers in both PHYs using USB
- Only transmit and receive Ethernet on one PHY
- Stand Alone Mode for scripting simulation of Ethernet traffic
- Status membrane label LEDs to show PHY and network status and buttons allow switching between PHY Modes
- Link and activity LEDs for both connections
- Vehicle Spy licensing support
- Full-duplex support for simultaneous data transmission and reception across both PHYs
- USB Type-C connector
RAD-Moon 2
Key Features:
- 100/1000BASE-T1 via Marvell 88Q2112 PHY
- Programmable membrane label with LEDs to show PHY and network status
- Membrane switches allow switching between 100BASE-T1 and 1000BASE-T1, and selecting master, slave or automatic PHY configuration
- Uses the TE MATEnet connector specially designed for 1000BASE-T1
- View network activity on a bar graph
- 4.5-40V power range, compatible with in-vehicle power
- Ruggedized USB Type-C connector for power, configuration, and PHY register monitoring
RAD-SuperMoon
RAD-SuperMoon, you can convert from 100/1000BASE-T1 Automotive Ethernet to standard 10/100/1000 Ethernet, useful for connecting a PC to a 100/1000BASE-T1 host or switch. Two RAD-SuperMoons can also be used as a pair to implement an active tap, allowing you to monitor traffic on a 100/1000BASE-T1 link between two ECUs or an ECU and a switch port.
Key Features:
- 100/1000BASE-T1 using the Marvell 88Q2112 PHY.
- Programmable membrane label with LEDs to show PHY and network status.
- Membrane switches allows switching between 100BASE-T1 and 1000BASE-T1, and selecting master, slave or automatic PHY configuration.
- Uses the TE MATEnet connector specially designed for 1000BASE-T1.
- Connect two RAD-SuperMoons to make an active tap that copies full-duplex communications between two hosts or a host and switch port with very low latency.
- Configure and monitor PHY registers via USB 3 (USB 3.1 Gen1, 3.2 Gbps).
- 4.5-40V power range, compatible with in-vehicle power.
- Ruggedized USB Type-C connector
RAD-Star 2
Intrepid’s RAD-Star 2 is a multi-purpose, dual Ethernet gateway for Automotive Ethernet applications. Using the RAD-Star 2, you can monitor both sides of a BroadR-Reach® (100BASE-T1 compatible) connection or connect your laptop to 2 nodes in media converter mode. As a gateway to standard 8-wire Gigabit Ethernet, RAD-Star 2 makes any existing standard Ethernet device, laptop, or data logger compatible with BroadR-Reach® (100BASE-T1 compatible).
Applications:
• Silently monitor the full-duplex connection between a pair of BroadR-Reach® / 100BASE-T1 devices
• Capture all Ethernet error frames normally discarded by standard Ethernet hardware
• Timestamp all Ethernet and CAN FD traffic at sub-microsecond resolution for testing gateways
• Transmit host Ethernet frames to either connected device for in-system ECU flashing or diagnostics
• Media converter timestamps both CAN FD and Ethernet simultaneously
• Communicate over Ethernet or USB
• Frame preemption support
• Master/slave auto-configuration plus manual selection option
• Precision Time Protocol (PTP) support
• Audio Video Bridging (AVB) support
• Flexible FPGA-based design allows updated Ethernet MAC implementations to meet future Ethernet TSN standards
• Standalone mode for creating your own Ethernet/CAN FD gateways using a real time scripting language
RAD-Galaxy
Key Features:
• Silently monitor the full-duplex connection on 6 links between BroadR-Reach® / 100BASE-T1 devices, or communicate with 12 nodes as a media converter
• Capture all Ethernet error frames normally discarded by standard Ethernet hardware
• Timestamp all Ethernet and CAN FD traffic at sub-microsecond resolution for testing gateways
• Transmit host Ethernet frames to either connected device for in-system ECU flashing or diagnostics
• Media converter timestamps both CAN FD and Ethernet simultaneously
• Master/slave auto-configuration plus manual selection option
• Precision Time Protocol (PTP) support
• Audio Video Bridging (AVB) support• 8x ISO CAN FD channels
• 2x SW or LSFT CAN
• Diagnostics over IP (DoIP) activation
• Full-sized SD card for standalone logging
• 10 ns timestamp accuracy across all networks
• Automotive power supply (5 – 40V)
• Temperature Range of -40C to +85C
• 1320 ns total latency
RAD-GigaStar
The RAD-Gigastar can monitor one pair of 100/1000BASE-T1* connections with an additional pair of SFP cages to support optical/ copper SFP transceivers. In addition, the RAD-Gigastar can also operate as a programmable gateway to create an Ethernet-to-Ethernet or a CAN-Ethernet gateway.
Key Features:
- 2x 100/1000BASE-T1 using the Marvell 88Q2112 PHY
- 2x 100BASE-TX/1000BASE-T/1000BASE-X SFP ports
- 6x ISO CAN FD channels with selectable on-board termination
- 2x FlexRay receive channels with selectable on-board termination
- 1 LIN/K Line
- 1 DoIP activation line
- Flexible media conversion between 100/1000BASE-T1, 100BASE-TX, 1000BASE-T and 1000BASE-X1, and other PHYs via SFP2.
- Supports and powers high-speed SerDes (LVDS/FPD-Link/GMSL) for camera, radar, or display with up to 2x SerDes tap pairs
- Intrepid’s SerDes module allows tapping FPD Link III, GMSL, and future SerDes protocols by switching SerDes modules
- Fully supports standalone mode, data logger mode, Wireshark and Vehicle Spy
- Full-size SD card with support for SD 3.0 (800 Mbps logging performance) and RTC Backup
RAD-Pluto
Intrepid’s RAD-Pluto is the first in a family of Automotive Ethernet switches designed specifically for bench and vehicle network development. This Layer 2 switch is configurable with up to 4x 100BASE-T1 ports, a 1000BASE-T port, and a GigE/USB bridge.
Key Features:
- IEEE 802.1Q tag support with 4096 VLANs
- Frame mirroring and VLAN tagging support for advanced debugging and monitoring
- 8x Dual purpose LEDs for network status and device configuration
- Rugged aluminum case with shock-absorbing boots
- Flexible power options (DB9/USB-C/Barrel-Jack)
- Field-upgradeable flash firmware
- Ethernet ports:
- 4x 100BASE-T1 ports
- 1x 1000BASE-T ports
- 2x CAN FD channels with programmable termination
- 1x LIN channel
RAD-Jupiter
Intrepid’s RAD-Jupiter is a rugged 7-port managed switch designed specifically for bench and vehicle network development. In addition to its Ethernet functionality, it integrates many of the key CAN, LIN, and scripting features found in our ValueCAN 4 family of tools.
Key Features:
- Marvell 88Q5050 Switch with Integrated 100BASET1 PHYs
- One channel of 1000BASET1
- 7-port switch with selectable Gigabit PHY’s
- Embedded AVB/TSN protocol stack
- Embedded processor for scripting and embedded C applications
- Intrepid Security Module supporting cybersecurity applications
- 8x dual purpose LEDs for network status and device configuration
- Rugged aluminum case with shock-absorbing boots
- Flexible power options (DB9/USB-C/barrel-jack)
- Field-upgradeable flash firmware
- 7 port switch:
– 5x 100BASE-T1 ports
– 1x 1000BASE-T or 1000BASE-T1 port
– 1x 1000BASE-T or USB/GigE bridge - 2x CAN FD channels with programmable termination
- 1x LIN channel
Vehicle Spy Supports Automotive Ethernet

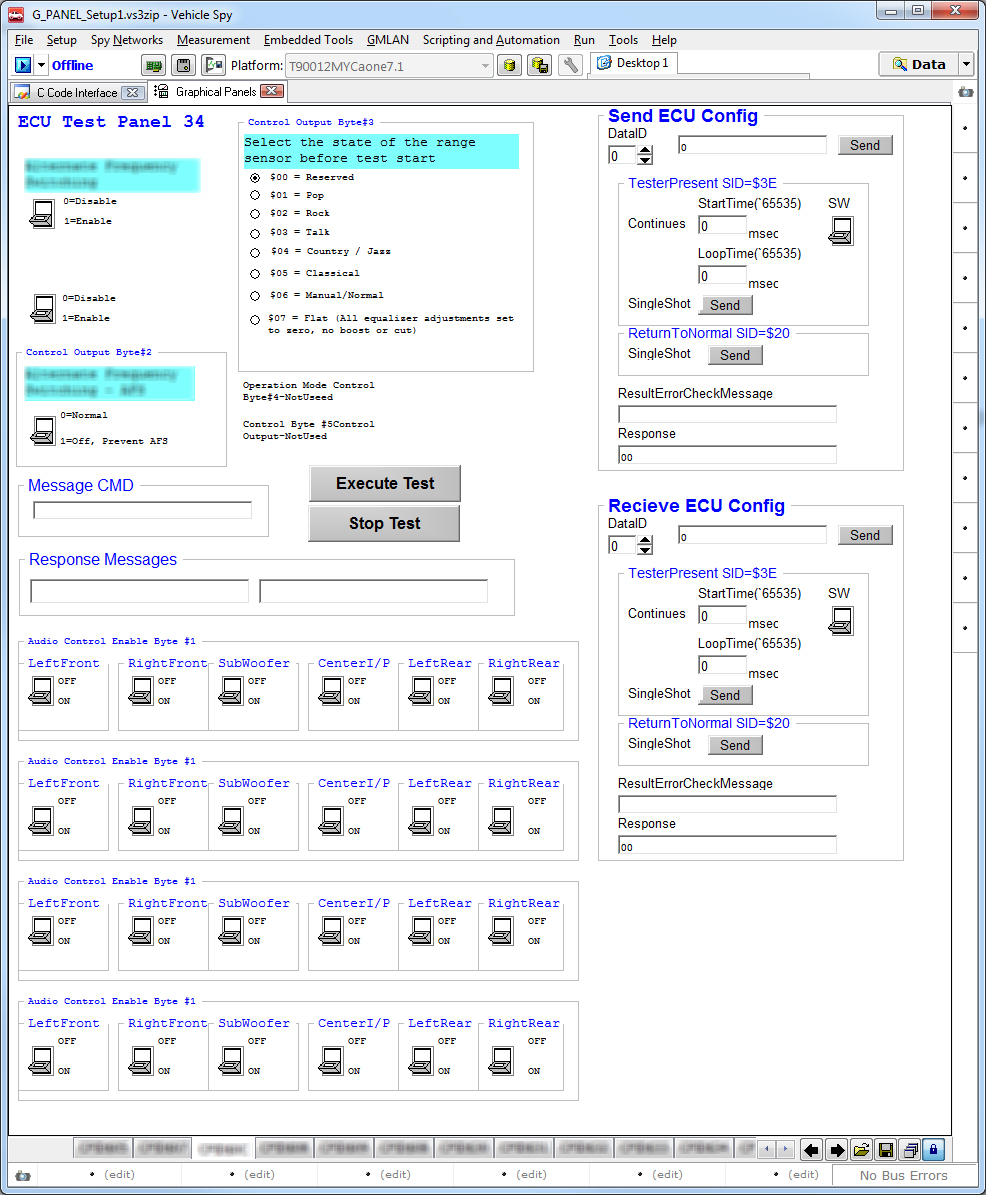

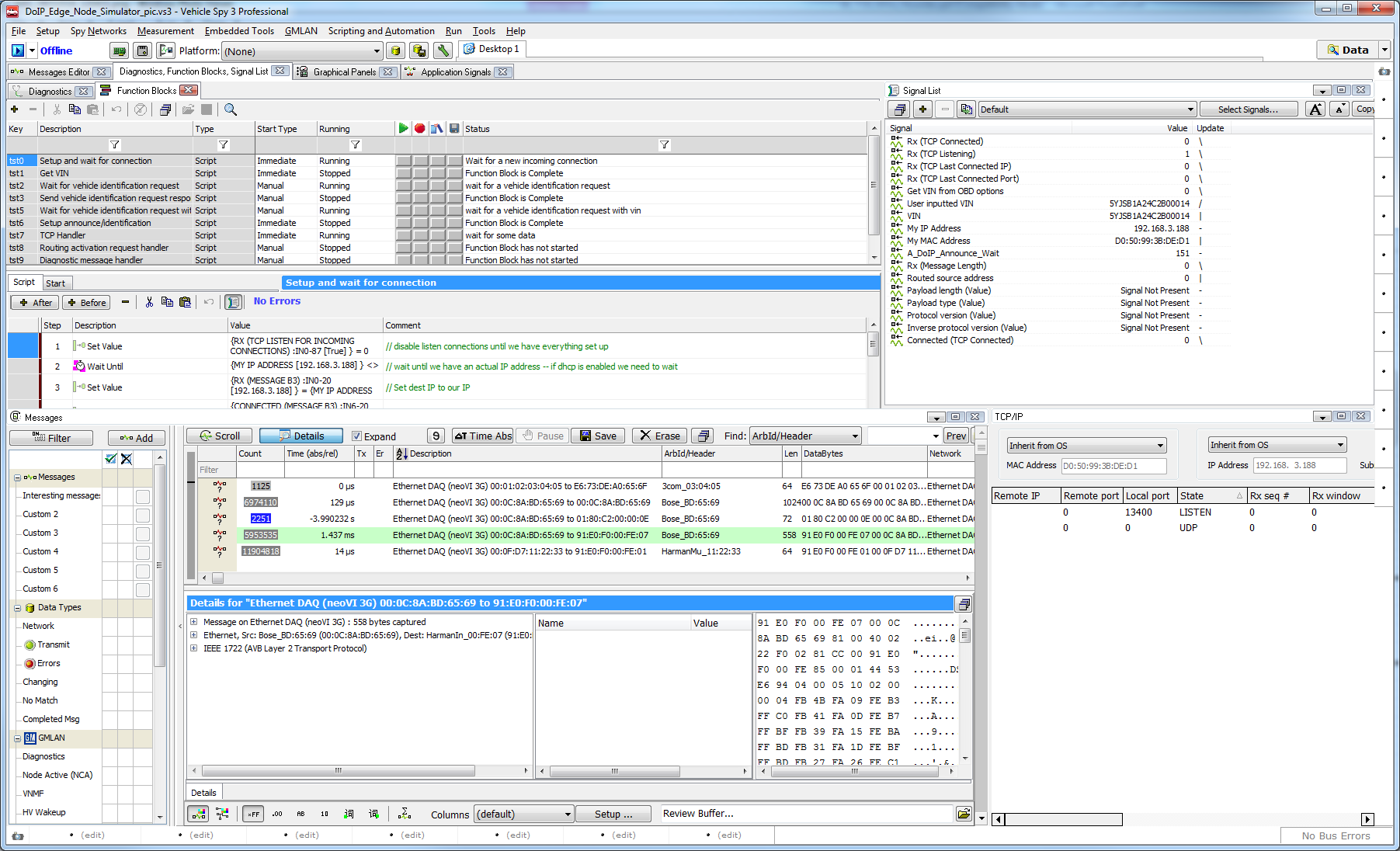

Intrepid’s Vehicle Spy 3 software analyzes and saves Automotive Ethernet data. You can view CAN, LIN, Automotive Ethernet and video data on one screen, time-aligned with an accuracy of 10 ns. Examine live data and load data logger captures to see when a test operator pressed a trigger button, synchronized with video frame captures and Automotive Ethernet frames.
Automotive Ethernet - The Definitive Guide
Find out more and preview selected chapters…
- TCP/IP
- BroadR-Reach®
- Switch technology
- Real-time protocols
- Audio Video Bridging
- IEEE physical layers
- Electromagnetic compatibility issues
- Much more!
